Pentagon Vaults is a leading manufacturer of vault doors, vault rooms & panic rooms for over 20 years. Using step-system doors & anti-torch technology, we build the heaviest-duty vaults doors in the USA. We’re also the first residential vault door to include a spider-web of TORCH-RESISTANT STAINLESS STEEL in every vault door. Because of our vault’s technologically-advanced features, we’ve never had a vault door lost to fire, pried open or penetrated in an attack. Our vault doors can be built in any size & in any color. Please review our vault door info and call us for a quote – 800-266-7150

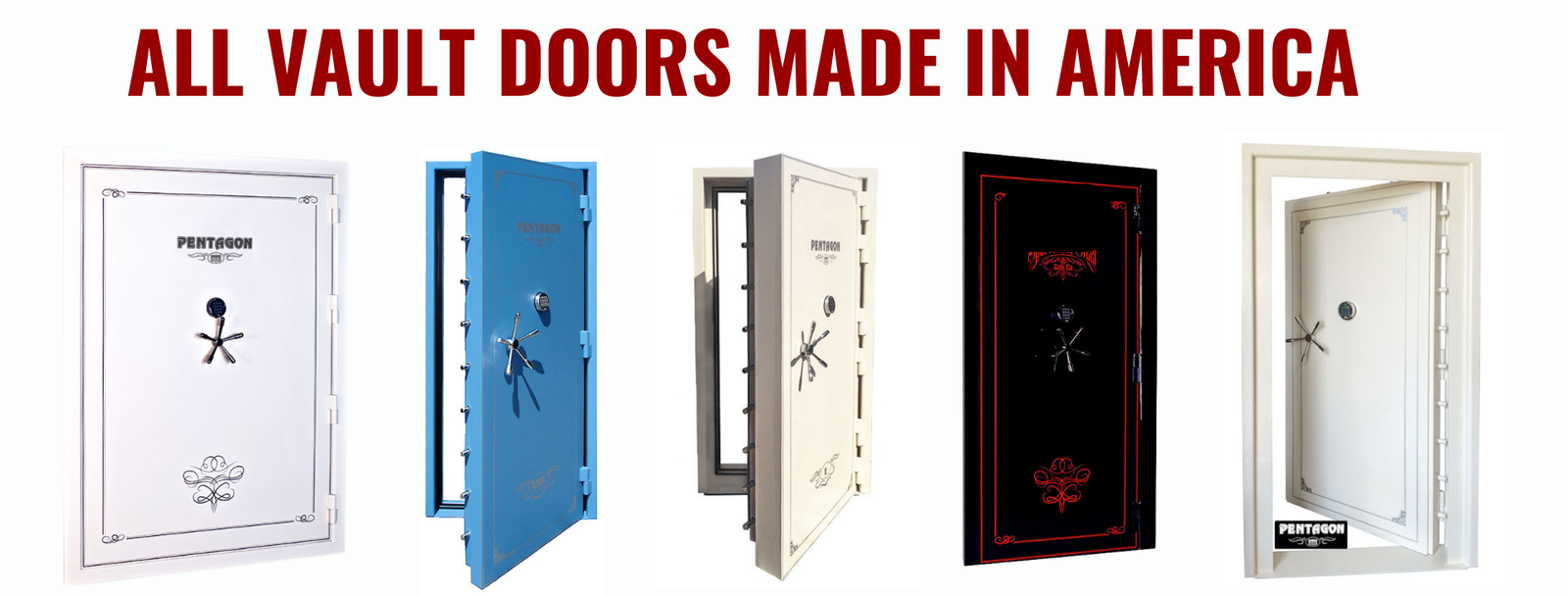

ALL VAULT DOORS ARE MADE IN AMERICA

TORCH-RESISTANT STAINLESS STEEL IN EVERY VAULT

Kevin Hand, CEO Sportsman & Pentagon Vaults
Our Clients: FBI, CIA & U.S. Secret Service



“Pentagon is the first company to weld torch-resistant stainless steel in every door, making it the most attack-resistant residential vault in America.”


WARRIOR VAULT DOOR

The Warrior Vault is hands down the best residential vault door in the US. It’s perfect for the client who wants a high quality vault, but doesn’t want to break the bank. Not only is it American-made, but every Pentagon vault is constructed with a feature no residential vault door possesses: a 1/4″ stainless steel “spider web” throughout the COMPLETE DOOR. This torch-resistant feature sets it apart from every vault door in our industry! The Warrior is equipped with a 2″ comp door, 14 bolts, 1/2″ pry-resistant frame, 1/2″ hardplate and two relocker that lockup your vault in a “drill out” attack. Because we sell factory-direct, this vault door has a lower price than competitor vault doors with no torch-resistant stainless steel. We’re proud to announce no Warrior has been broken into EVER. The Warrior is for the client who wants a torch-resistant door and doesn’t want to spend a lot of money. If you want to order a Warrior vault door, call us at 800-266-7150 and one of our vault door experts will help you with the process! Standard features include: 14 bolts, high-temp concrete fire insulation, Polusal expand gasket, 2 barrel relockers – 1″ x 5″, emergency internal release handle, ten semi-gloss paints, chrome plating, silver pin-stripe & logo, 1/4″ chest-plate, Stainless steel torch-resistant “spider web”, banker wheel handle and a 1/4″ thick steel plate door. It’s USA Made with a lifetime warranty on everything including the lock.
2″ DOUBLE STEEL DOOR – USA MADE
1/4″ STAINLESS STEEL SPIDERWEB
90 MIN FIRE – 6000-DEGREE CONCRETE
80 x 36 x 8 – $5395
80 x 42 x 8 – $5995
  • 2″ Double Steel Door – 90 Minute Fire
  • USA Made – 5 1/2″ 3-LAYER STEEL DOOR
  • 1/2″ Pry-Resistant Frame
  • 6000 Degree Concrete Fireproofing
  • Stainless Steel Shields Twin Relockers
  • S&G LOCK – US Commercial Digital (Optional)
  • Semi-Gloss Paint – Six Colors available
  • Gold, Silver or Black Pin Stripe & Logo
  • Texas Tech Approved Tornado Door
  • 18 Bolts – 1/2″ Hard plate in Door
  • Auto Locking Panic Room Handle
  • Bank Wheel – Removable Capability
  • 2 Block-Head Relockers – 2 Expansive Gaskets
  • Made in the USA – Life Warranty on Everything

FORTRESS VAULT DOOR

The FORTRESS vault door may be priced like an affordable residential vault, but it’s build more like a high-end commercial grade vault. Yes, its build with pride in America, but what sets it apart is it’s 2″ step door, 3/4″ anti-pry steel frame and it’s stainless steel reinforcements. Most vault doors in our industry have flat surface doors than only seal on one level, similar to a gun safe. But the Fortress is build like a bank vault with a interlocking step door with two expand gaskets that swell to 8 x their size in a fire and seal up your vault on four points. And don’t forget, the Fortress comes with Pentagon’s most famous feature: 1/4″ torch-resistant stainless steel throughout your COMPLETE VAULT DOOR. NOTE: No Fortress vault has been broken into or lost to fire… EVER. Standard features include: 2″ Jig-Saw Door,18 bolts, 3/4″ pry-resistant frame, 1/2″ – 60 Rockwell hardplate that slows drill attacks, concrete fire insulation, twin expand gaskets, 1/2″ chest-plate, 4 barrel rockers, US Made, Emergency internal release handle, double steel door (1/4″ & 16 Gauge), ten semi-gloss finishes, silver or gold plating, pin striping, logo and initials. Lifetime warranty on everything. If you add the inward-swing option, we can build your vault with 3-layers of steel, which makes it extremely ballistic resistant. If you have more questions about a Fortress vault door, call us at 800-266-7150 and one of our vault pros will help you with your purchase!

2″ JIG-SAW STEP DOORS –
1/4″ STAINLESS STEEL CHEST PLATE
2 HR FIRE RESISTANCE – 6000-DEGREE CONCRETE
80 x 36 x 8 – $5995
80 x 42 x 8 – $6695

  • 2″ Jig-Saw Step Door – 120 Minute Fire
  • USA Made – 5 1/2″ 3-LAYER STEEL DOOR
  • 3/4″ Pry Resistant Frame – Double Step
  • 6000 Degree Concrete Fireproofing
  • STAINLESS STEEL TORCH RESISTANT CHESTPLATE
  • S&G MECH LOCK – LG Commercial Digital OPTIONS
  • Semi-Gloss Paint – Black, Blue or White
  • Gold or Silver Decorative Pin Stripe & Logo
  • Texas Tech Approved Tornado Door
  • 18 Locking Bolts – 1/2″ Hard plate
  • Panic Room Release Handle
  • Bank Wheel – Removable
  • 2 Relockers – 2 Expander Gaskets
electronic-lock
Double Digital Locks
Over-ride System – $599
Optional: Pour-In Place Frame
USA MADE VAULT DOOR
2″ JIG-SAW DOOR
Inward Swing Vault

BRIGADIER VAULT DOOR

The BRIGADIER super vault is a high-grade commercial level vault we sell at a residential vault price. This vault is for the client who want an all-in-one vault door, one that’s drill, torch & blast-resistant! Equipped with a 1/4″ spiderweb of stainless steel, this vault is super hard to defeat. It’s constructed from 1/2″ steel plate AND has a 1/2″ thick stainless steel chest-plate, which means if a thief cut into the vault’s center area, they’d have to go through 1″ of solid steel. And because there’s 1″ hardplate, if a crook drilled the lock, they’d have to penetrate 2″ of solid steel! Our Brigadier is also beloved because of it’s 2″ step door and fire-resistance. During a fire, the double expand gaskets seal the door on 4-points. The Brigadier is perfect for clients who need to protect jewelry, precious metal and valuables that far exceed firearms.
Pentagon’s Brigadier Vault Doors are the perfect addition to any corporation, Security Building or Multi-Million dollar home in need of maximum fire protection. None of our Crown Vault Doors have lost any belongings to fire or been broken into in 36 years. Crown Vault Doors are DOJ Compliant.

1/2″ PLATE STEEL DOOR
1/4″ STAINLESS STEEL CHESTPLATE
2″ JIG-SAW DOOR – 2.5 HOUR FIRE
Concrete Fireproofing – 4 x More Heat Resistant than Competitor’s Drywall

80″x36″x8″ – $7895
80″x42″x8″ – $8695

  • 1/2″ STEEL – FRONT PLATE
  • 2″ Jig-Saw Door – 2 HR Fire
  • Jet Board Fire Insulation – 6000 Degree Concrete Fireproofing
  • 1/2″ Stainless Steel Chest plate – Super
  • S & G Spy Lock w key – Digital Lock Optional
  • 8 Color Options – Black, Blue, Burg, Green, White
  • Gold Plate and Scroll Pin-Stripe
  • 3/4″ 60rw Hardplate
  • 18 Bolt Locking System Emergency
  • Internal Release
  • Old West Bank Wheel
  • Custom Three Initials – Bottom Logo
  • Twin Multiple Level Re-Lockers
  • 2 Palusol® Expand Gaskets

MAJOR VAULT DOOR

The MAJOR is an embassy-level commercial vault door with a 3/4″ steel solid steel door and a 3/4″ stainless steel chest-plate. This makes torch-attacks futile! It’s perfect for clients who leave the country for months at a time and need to defend against brutal torch & drill attacks that could last hours. The 1″ hardplate and torch-resistant reinforcements make this vault an all-around crime stopper. The center part of the vault has 1 1/2″ of solid steel, which even defends against C-4 attacks. (see our C-4 video). The Major’s 3″ Step Door contains 2-layers of hi-temp concrete and several layers of fire-board, which gives it a 2.5 hour fire level. And if a thief tries to drill our relockers, good luck. Four 1″ x 5″ barrel relockers need to be drilled in four secret locations, which has never happened. The Major is sold FACTORY-DIRECT at a price in-line with affordable residential vaults. If you have questions about buying a Major vault door, call us at 800-266-7150 and one of our vault pros will assist you with your purchase!

3/4″ PLATE STEEL DOOR
STAINLESS MATRIX IN TOTAL DOOR 3″ JIG-SAW DOOR – 2.5 HOUR FIRE Concrete Fireproof – 4 x More Heat Resistant than Competitor’s Drywall

80″x36″x8″ – $8995
80″x42″x8″ – $9595

  • 3/4″ STEEL – FRONT PLATE
  • 3 “Jig-Saw Door – 2.5 Hour Fire
  •  6000° Degree Concrete in Door & Frame – THREE LAYERS IN DOOR & FRAME
  • 3/4″ Stainless Steel In All Vital Cut Area
  • Triple-Tiered Steel Door Construction
  • Three Palusol Gaskets – Expand in Fire
  • 1″ Solid 60rw Hardplate
  • 3 – 1″ Hinges – Removable Door
  • 3/4″ Thick Steel Bolt Protectors
  •  Bank Handle – Removable
  • US Sargent & Greenleaf Lock/Key
  • 510 Custom Colors – See Chart
  • Custom Scroll Pin-Stripe & Custom Logo
  • NEW – 4 Jarhead Spring Relocker
  • Emergency Release – Spring Loaded
  • Panic Room Release Handle
  • 18 Bolts – 9 Active – 9 Dead – For Maximum Strength
  • Life Warranty – Lock & Fire
Internal Emergency Release
Spring Loaded
NEW!
3″ Jig Saw Door
Top vault doors
5 Prong Bank Handle – Removes
American LA-Garde Digital Lock –
Quick Access
4 Re-Lockers – 1 1/4″ x 5″
Solid Steel
Phantom Vault Doors come in
Seven Enamel Colors — FREE!
  • 4 Re-Lockers – 1 1/4″ x 5″ Solid Steel
  • Spring-Loaded – Totally Independent
  • 5 Drill Points in Door – Most Ever in a Gun Safe
  • Multiple Level Re-Lockers – No Drill-Outs in 36 Years
  • Gravity-Resistant – Rack-Style Lock-up
  • USA Made System – Custom Drill Points Available

QUANTICO VAULT DOOR

The QUANTICO is a MEGA-NEXT-LEVEL vault door that truly DOES IT ALL. It’s a fire, torch, cut, drill & blast-resistant vault door, similar to the way an actual bank vault is constructed. It earned it’s name, when the U.S. Quantico Training Facility ordered one from us! It’s 6″ thick – double 1/4″ steel door is open at the top so YOU can add concrete to it’s “blast-chambers.” Adding the concrete yourself after the vault is hung makes it easier to install. Before the concrete it added, it weighs 1800lbs. After it’s filled, it comes in at a hefty 4000lbs. Because this vault door is 6″ thick with four layers of steel and a concrete core, it’s a total nightmare to breach. The chest-plate area has 2″ of solid steel! If you’re wondering why we added 3 – “U-Shaped” blast-chambers inside the door, it’s to improve the blast rating. If this door experienced a C-4 attack or if a 4″x4″ missile is shot at this door during a storm, the double 1/4″ steel will compress like an accordion, absorbing the blast. If my life depended on my vault door, I’d go with the Quantico vault door every time! And because it’s factory-direct, you get a great price.

4 HOUR FIRE & BLAST DOOR – 2750 LBS W/Concrete
Clients: Federal Agencies & Nuclear Power Plants
80″x40″x15″ – $9,995
80″x50″x15″ – $11,295

  • 6″ Interlocking Door – 15″ Overall thickness
  • 4 Hour Fire – Concrete-Filled Cavity
  • 1800 lbs Empty – 2750 lbs Filled with Concrete
  • 4 U-SHAPED Blast Resistors in Door
  • 1/4″ Stainless Steel Chestplate & Bolt
  • Panel Blast Door – Accordion Compress Structure
  • 2 Expand Gaskets – Reverse Jig-Saw Frame
  • 1″ Hardplate – 5 – 1″ Thick Hinges
  • 1/2″ OVERLAPPING Steel Frame – Blast Resistant
  • Wedge-Shaped Blast Door – Absorbs Shock
  • 5- P Bank Handle – Removable
  • Sargent & Greenleaf Lock & Key
  • NEW – 4 Jarhead Spring Relocker
  • Internal Emergency Release
  • 18 Bolt Independent System
  • Lifetime Vault Fire Warranty

GENERAL SERIES VAULT DOOR

The GENERAL vault door is for the client who says, “I’m only doing this once. I want the best, period!” We at Pentagon Vaults can identify with this concept. If you’re going thru the pain of building a vault room, why not send the extra few bucks and get the ultimate vault door. Yes, it’s more money but you get an insanely secure vault with 1″ of solid steel AND a 1″ thick stainless steel chest plate that protects your valuables from every attack possible. It also has four ridiculously thick spring-activated jar-head relockers. And finally, the fire resistant is next level with a 2″ step door (2.5 hour). This vault door can be painted almost any color for no extra cost. It can also be upgraded with a stainless steel exterior veneer that resembles a Swiss bank vault. Governments and federal agencies order this vault door because it’s “data sheet” resembles a super expensive T.L. rated vault door that costs double our price.

1″ Steel Plate Door – COMMERCIAL LEVEL VAULT
STAINLESS STEEL THROUGHOUT DOOR
THIS DOOR IS TORCH & GRIND RESISTANT

80″x36″x8″ – $10,995
80″x42″x8″ – $11,995

  • 3″ Step System Door- 2.5 + Hour Fire
  • 1″ Solid Steel Plate Door
  • 1″ Stainless Steel Chestplate
  • 1/4″ Stainless Steel Panels inside Door
  • 6000 Degree Concrete Fireproofing
  • 3 Expandable Gaskets
  • 1″ 60 rockwell Hardplate
  • 4 – 1″ Hinges – Removable Door
  • 5 Prong Bank Wheel – Simple to Remove
  • Sargent & Greenleaf Lock/Key
  • Custom Colors – 10 Options – See Chart
  • Silver / Gold Scroll Pin-Stripe
  • 4 – 1″ x 5″ Jarhead Spring Relocker
  • Panic Room Handle & Internal Release
  • 18 Bolt System
  • Lifetime Vault Warranty

THE INTRUDER DOOR

Pentagon Vaults introduces the first bedroom door that protects citizens during home invasions. Secured with 6 heavy-duty bolts and ballistic grade steel, the Intruder door shields against kick-ins, pry-ins and 99% of gun fire. If a criminal breaks into your home simple shut your Intruder Door and contact the authorities. Call for a quote!

INTRUDER DOOR I
80″ x 32″ x 4″ – $4995
80″ x 36″ x 4″ – $5595
80″ x 42″ x 4″ – $5995
INTRUDER DOOR 2
With AR-500 Ballistic Level
80″ x 32″ x 4″ – $6595
80″ x 36″ x 4″ – $6995
80″ x 42″ x 4″ – $7595

  • Six Panel Wood Veneer Door
  • 1/4″ Ballistic Resistant Steel
  • 1/4″ Pry-Resistant L-Shaped Frame
  • 6 Bolt System – 1/4″ Solid Hard plate
  • Decorative Handle – Chrome or Bronze
  • Dead-Bolt Lock – Additional Top & Side Dead Bolts
  • White Finish – Custom Colors Available
  • Relocking System

JIG SAW DOOR

Our Jig-Saw Doors are just like the doors found on $10,000 commercial safes. They’re up to 3″ thick and constructed with a reverse step-system on your door and frame. So when you close your door it fits together like a jig-saw, making your vault doors the most airtight in the industry! And our Jig-Saw Door has two gaskets! One expandable gasket and one silicon hot air seal. This is crucial, because when a house catches fire, our competitors heat-activated gasket don’t start expanding for eight minutes. This allows hot air in your safe. Not a Jig-Saw Door. When hot air passes your Palusol® expandable gasket, a second hot air seal stops the hot air, rerouting it over your expandable gasket a second time! This not only keeps heat out of your safe but helps expand your gasket twice as fast! This is the kind of technological inventiveness that keeps Sportsman Vault Doors a step ahead of the rest.

AVAILABLE VAULT DOOR OPTIONS

U.S. Digital Locks ($295), Pour-in-place frame ($595), blast-resistant threshold (free), vibration-sensor ($425), EMP-Resistant Locks ($495), 1/2 & 1″ AR-500 Ballistic steel ($3800-7800), tactical panels that hold up to 18 rifles & 80 handguns ($350). Pistol Doors – 20-30 pistols ($350-395) Ten semi-gloss finishes free. Custom colors w/ paint codes ($295) Silver hardware (free), Gold & Black chrome Hardware ($150), Rush Fees ($1500). Distressed Steel Look ($1995), Swiss Bank Vault Look ($4995). If you want an option you saw at another company, call us. Be can probably offer it for nominal fee.

INSTALLING YOUR VAULT

Installing a Pentagon vault door is easy. It takes 2-4 hours depending on it’s weight. You will need several men or a forklift to stand up your vault and wiggle it into it’s opening. Before your vault door arrives, build your opening 3/8″ taller and 3/8″ wider than your vault door. For example, if you like the 80″ tall x 36″ wide x 8″ deep vault, build your opening 80 3/8″ tall x 36 3/8″ wide x 8″ deep. Once it’s stood up, you simply wiggle it into it’s opening. After you make sure it’s level, mark your holes and lag-bolt your vault door to your concrete. Squirt several tubes of fire caulking into the space between your frame and concrete wall and you’re done! And you can always call us while you’re installing your vault and we’ll help you along the way. Thank!
STANDARD SIZE VAULT DOORS
Model Dimensions (inches) Wall Thickness Steel Thickness & Fireproof Level Weight (lbs.) Price ($)
WARRIOR 80 x 36 x 8 6″ to 12″ 1/4″ STEEL, 16 GAUGE – 90 MIN FIRE 1000 5395
FORTRESS 80 x 36 x 8 6″ to 12″ 1/4″ STEEL, 16 GAUGE – 2HR FIRE 1200 5995
BRIGADIER 80 x 36 x 8 6″ to 12″ 1/2″ STEEL, 16 GAUGE – 2.5 HR FIRE 1650 7895
MAJOR 80 x 36 x 8 6″ to 12″ 3/4″ STEEL – 16 GAUGE – 2.5 HR FIRE 1870 8995
QUANTICO 80 x 40 x 15 6″ to 12″ 6″ WIDE – DOUBLE 1/4″ Steel – 3.5 HR FIRE 3900-4500 9995
GENERAL 80 x 36 x 8 6″ to 12″ 1″ SOLID STEEL, 16 GAUGE – 2.5 HR FIRE 2550 10995
WIDER VAULT DOORS
Model Dimensions (inches) Wall Thickness Steel Thickness & Fireproof Level Weight (lbs.) Price ($)
WARRIOR 80 x 42 x 8 6″ to 12″ 1/4″ STEEL, 16 GAUGE – 90 MIN FIRE 1200 5995
FORTRESS 80 x 42 x 8 6″ to 12″ 1/4″ STEEL, 16 GAUGE – 2HR FIRE 1400 6695
BRIGADIER 80 x 42 x 8 6″ to 12″ 1/2″ STEEL, 16 GAUGE – 2.5 HR FIRE 1850 8695
MAJOR 80 x 42 x 8 6″ to 12″ 3/4″ STEEL – 16 GAUGE – 2.5 HR FIRE 2050  9595
QUANTICO 80 x 50 x 15 6″ to 12″ 6″ WIDE – DOUBLE 1/4″ Steel – 3.5 HR FIRE 4300-4800  11295
GENERAL 80 x 42 x 8 6″ to 12″ 1″ SOLID STEEL, 16 GAUGE – 2.5 HR FIRE 2810 11995
